XOTclIDE. Integrated Development Environment for XOTcl and Tcl

News

2015-06-12

Version 0.90 released. XOTclIDE was redesigned and renamed to TclSqeak use new page TclSqueak

2014-12-25

Version 0.86 released. many usability improvements towards modern IDE. Use ttclcheck internally

2012-02-11

Version 0.85 released. compatible with XOTcl 2.0. Many Improvements. Many thanks to Gustav Neumann for patches

2009-02-21

Version 0.84 released. Syntax checker recognize lassign. Script editor plug in was improved. small bug fix in debugger.

2008-05-10

Version 0.83 released. Adapted for XOTcl1.6. Some small improvements and bug fixes.

XOTclIDE: simple, highly flexible, integrated

• Source Code Editing (Tcl and XOTcl) with Syntax Highlighting
• Code Completion
• System Introspection (Reflection)
• Source Documentation
• Debugging, Tracking
• Source Syntax Checking for Tcl and XOTcl
• Version Control System
• Team Programming Support
• Test Support (Unit Test Framework)
• Configuration Management (also Deployment and Release-Management)

XOTclIDE is suggested and inspired by some great Smalltalk graphical environment systems as Squeak or Envy.

Page content:

Introduction

Screen-shoots

Manuals

Downloads

About Author

• XOTclIDE can manage even big projects with many thousand lines of Tcl or XOTcl program code.
• Supports component based development that helps to structure and reuse code in different applications.
• Enable interactive XOTcl development by using introspection functions of the XOTcl language. There is no difference in using, developing, debugging and browsing (introspection) the system. So you can work on a live XOTcl system.
• XOTclIDE has some powerful structure browsers. They can be used to browse class and object structure and to add and modify the methods or meta-data.
• XOTclIDE Object Inspector lets you browse and manipulate all XOTcl objects. You can navigate through sub-objects structures, inspect and modify variables, or even invoke objects method by GUI.
• XOTclIDE include a powerful syntax checking tool to find all typos at editing time.
• XOTclIDE can also manage normal Tcl procedures (procedural Tcl). This allows to reuse old no-XOTcl code or mix procedural Tcl and object-oriented XOTcl code in one project.
• Support of the programming process. Version Control, Unit Tests Framework
• XOTclIDE can be easily adapted and extended.
• XOTclIDE can be extended with dynamically loadable modules (plug-ins)
• Enables team development.

Screen Shoots

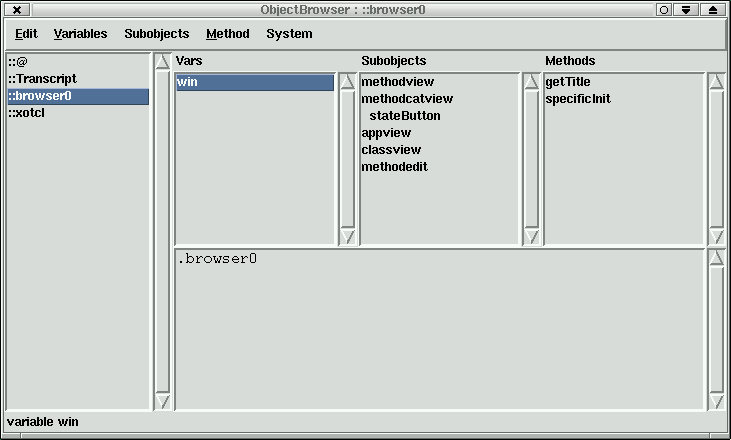

There is an Object browser (or Object inspector). You can modify the object variables and invoke object method directly from the GUI.

Manuals

• XOTclIDE Guide PDF
• XOTclIDE Guide HTML
• XOTclIDE Guide - HTML tarball
• XOTclIDE Guide - source in XML DocBook
• XOTclIDE source code documentation generated with internal documentation tool
• Presentation slides from 4. European Tcl Workshop (05.2003).
• Making legacy Tcl code object oriented. Presentation slides from 5. European Tcl Meeting.

Future of XOTclIDE

You can use the xotclide page on Tcl wiki to write direct your comments.

Downloads

• xotclIDE-0.86-0.tar.gz Source files with documentation. If you want use mysql as version control database you will need mysqltcl.
• XOTclIDE binaries One executable run-ready exe-file (no installation is needed) for Windows and Linux Intel. You do not need Tcl installation to get it running.

External Links about XOTclIDE

• XOTclide on Tcl wiki Also with wish list and known bugs page.
• XOTcl on French Wiki
• WinTclTk open-source Tcl/Tk distribution for Microsoft Windows, which contains XOTclIDE.
• XOMTI Project derived from XOTclIDE maintained by Fabrice Pardo. With full project infrastructure.

Author and License

• sqlite adapter was initially written by Oleg Oleinick
